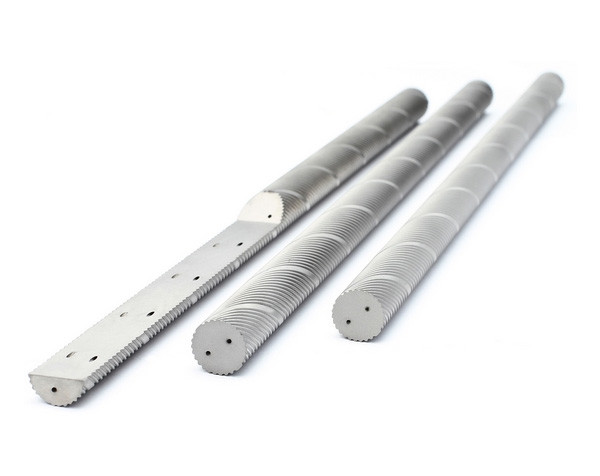

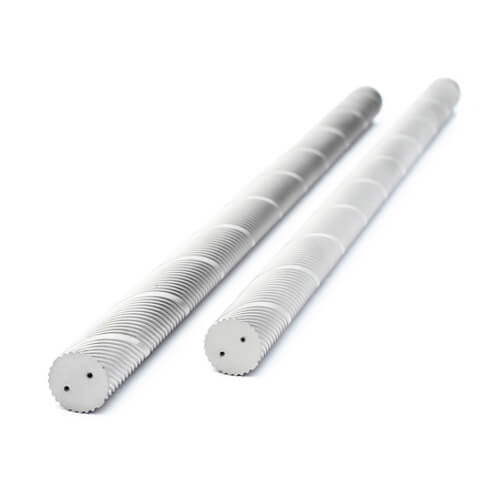

Συμπυκνωμένες τσιμενταρισμένες στερεό ράβδοι καρβιδίου με δύο τρύπες ψυκτικού μέσου ελίκων
| Unground |
Έδαφος h6 |
Λ Tol. +5.0 |
TK |
Tol. |
δ |
Tol. |
Πίσσα |
|
|
Δ |
Tol. |
|||||||
| 6.3 |
+0.4/+1.0 |
6.0 | 330 | 2.7 |
±0.2 |
0,80 |
±0.15 |
32.65 |
| 7.3 | 7.0 | 330 | 3.5 | 1.00 | 38.09 | |||
| 8.3 | 8.0 | 330 | 3.4 | 1.00 | 43.53 | |||
| 9.3 | 9.0 | 330 | 4.5 | ±0.3 | 1.40 | 48.97 | ||
| 10.3 | 10.0 | 330 | 4.8 | 1.30 | 54.41 | |||
| 11.3 |
+0.4/+1.2 |
11.0 | 330 | 4.9 |
±0.4 |
1.40 | 59.86 | |
| 12.3 | 12.0 | 330 | 6.3 | 1.70 | 65.30 | |||
| 13.3 | 13.0 | 330 | 6.1 | 1.75 |
±0.20 |
70.74 | ||
| 14.3 | 14.0 | 330 | 6.7 | 1.80 | 76.18 | |||
| 15.3 | 15.0 | 330 | 7.3 | 1.75 | 81.82 | |||
| 16.3 |
+0.4/+1.4 |
16.0 | 330 | 8.0 | 2.00 | 87.06 | ||
| 17.3 | 17.0 | 330 | 8.5 | 1.75 |
±0.25 |
92.50 | ||
| 18.3 | 18.0 | 330 | 9.0 | 2.30 | 97.95 | |||
| 19.3 | 19.0 | 330 | 9.7 | 2.00 | 103.39 | |||
| 20.3 | 20.0 | 330 | 10.0 | ±0.5 | 2.50 | 108.83 | ||
